1030 Scale Size Accumate Couplers with Draft Gear 12-Pair

Scale Size Accumate Couplers with Draft Gear
12-Pair (Equips 12 Cars)

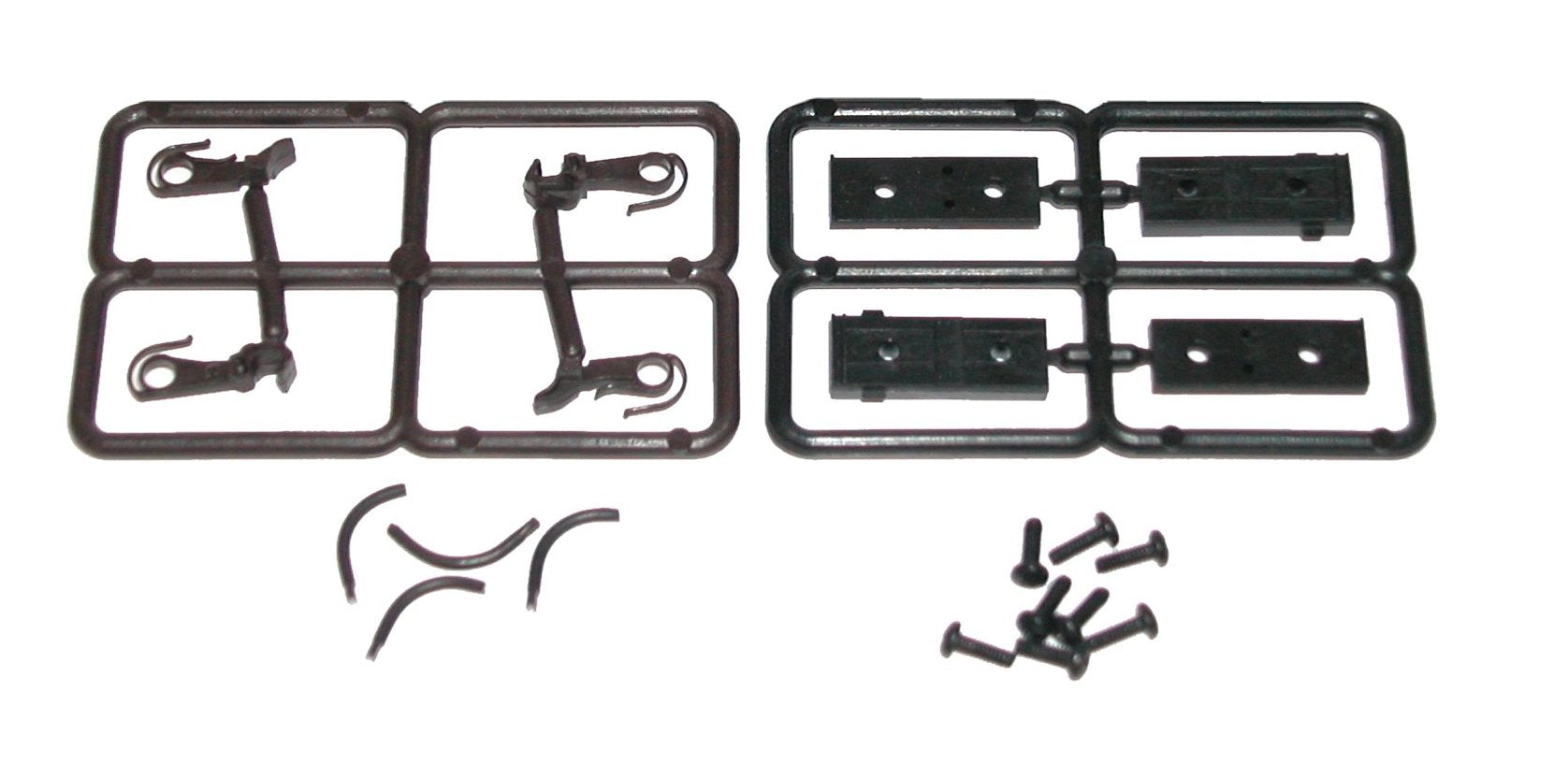

Includes 12 Coupler Sprues, 12 Draft Gear Sprues,
24 Trip Wires and 48 Mounting Screws 0-80 x 3/16"

Draft Gear Dimensions:
Box length .6330 in.
Box Width .2355 in.
Holes center to center .325 in
Outer box end to center of outer hole .170 in.
Outer box end to center of inner hole .500 in.
Inner box end to center of inner hole .1425 in.
